H.D.ECKHARDT Ges.m.b.H.
H.D.ECKHARDT ist ein österreichischer Spezialist für Ringpull-Verschlusssysteme und Dosenversiegelungstechnik. Das Unternehmen fertigt Verschlussköpfe, Einfülltrichter, pneumatische Elevatoren und Handverschlussgeräte für die Getränke- und Lebensmittelindustrie.
Produkte & Maschinen(71+)
Kontakt
Kontakt Büro: H.D.ECKHARDT Ges.m.b.H. Dr. Krammer-Strasse 18, A-2100 Korneuburg - Austria E-mail: office@hdeckhardt.com Kontaktperson: DKFM. Horst-Dieter Eckhardt Telefon: +43 2262 757 35 Mobil: +43 664 326 4544 E-mail: hde@hdeckhardt.com UID-Nummer: ATU62693026 Firmenbuchnummer: 280845h (HG Korneuburg) Produktion: Wienerstrasse 37, A-2203 Grossebersdorf - Austria Kontaktperson: Ing. Mathias Haitzer Mobil: +43 664 4118 466 E-mail: mh@hdeckhardt.com
Preis auf Anfrage
Closing head – insert for PET bottles
H.D.ECKHARDT
For closing Ringpull closures 26,5mm on PET or glass bottles.
Contact for price

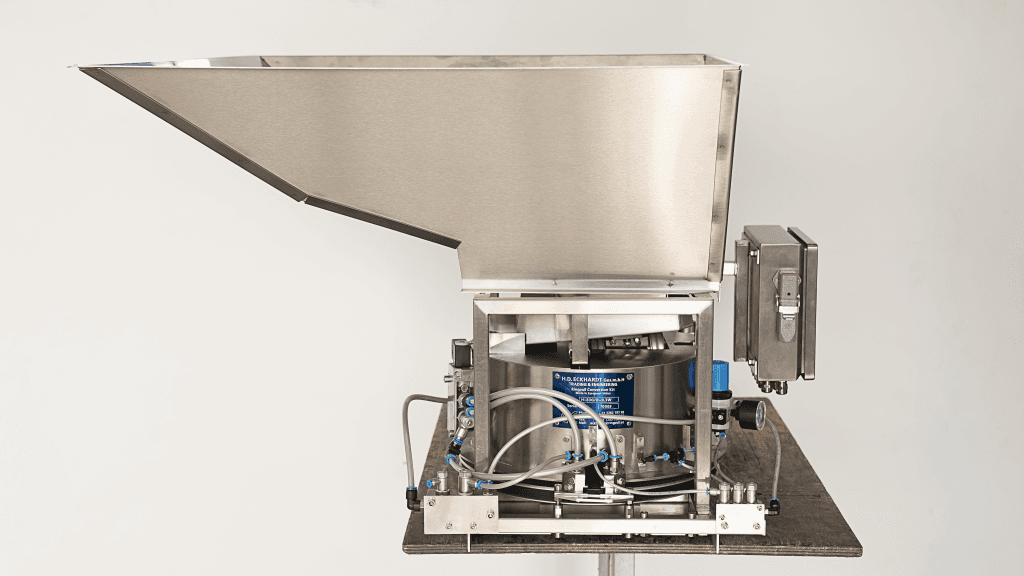

Sortierwerke
Sortierwerke von RingPull-Verschlüssen Sortierwerke bestehen aus dem Hopper und der Dosierung. Die Steuerung ist an das Sortierwerk angebaut oder mit diesem über den Klemmenkasten verbunden. Die Bedienung erfolgt über ein Bedienerkabel oder das Schaltpult des Verschließers. Modell: H-33 G Geschwindigkeit: 9.000 K/h Gewicht: 28 kg Abmessungen: 650x540x290 mm Modell: Hopper H-80 E Geschwindigkeit: 42.000 K/h Gewicht: 86 kg Abmessungen: 1100x990x560 mm Modell: H-52 E Geschwindigkeit: 23.000 K/h Gewicht: 60 kg Abmessungen: 800x680x510 mm Modell: Hopper H-90 E Geschwindigkeit: 50.000 K/h Gewicht: 98 kg Abmessungen: 1250x1100x560mm Modell: H-60 E Geschwindigkeit: 30.000 K/h Gewicht: 63 kg Abmessungen: 900x800x560 mm Modell: Hopper H-120 E Geschwindigkeit: 60.000 K/h Gewicht: 116 kg Abmessungen: 1430x1300x560 mm
Preis auf Anfrage

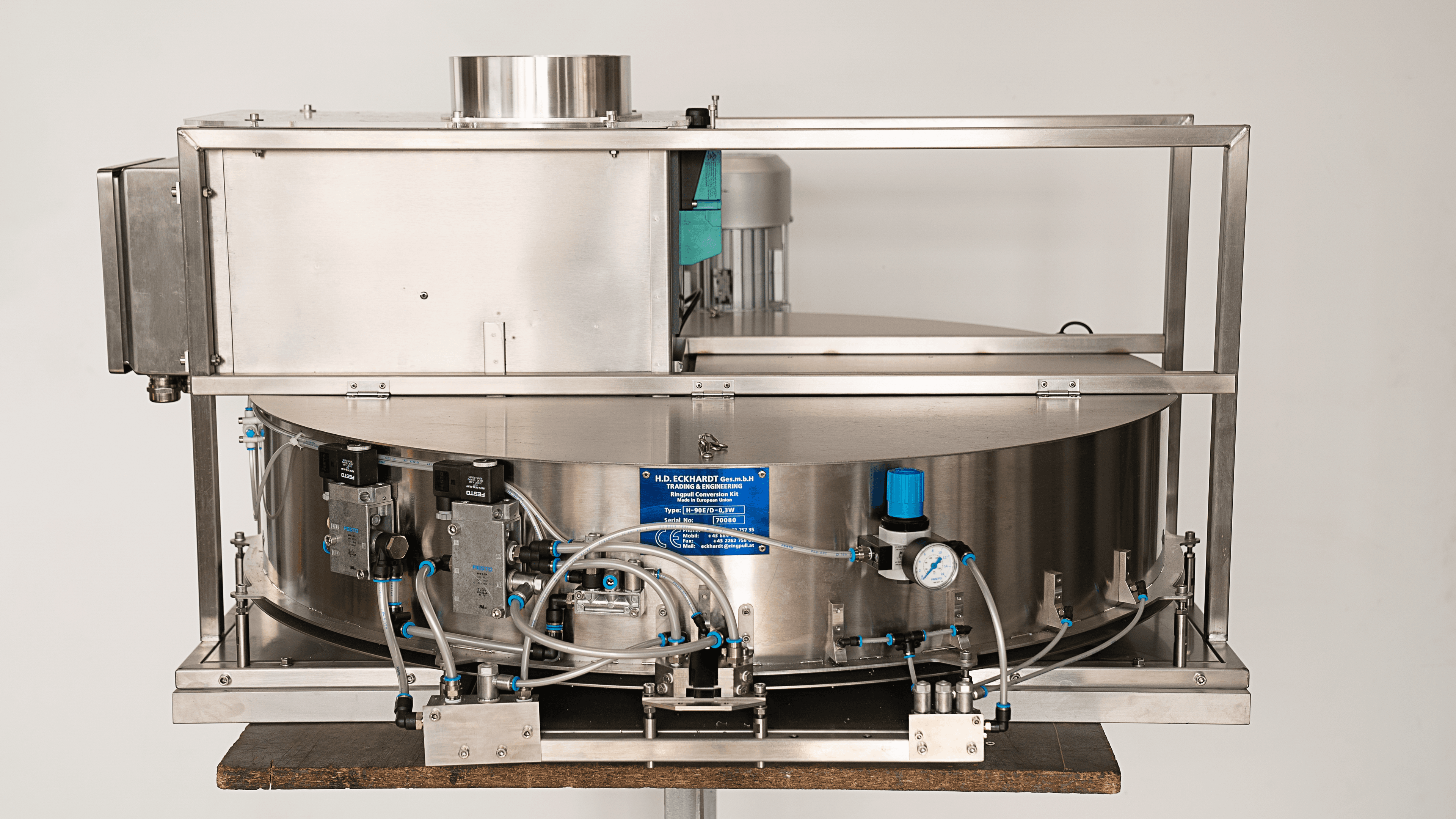

Sorting Unit H-90E
High-performance sorting unit for RingPull closures. Professional grade for high-volume operations.
Contact for price

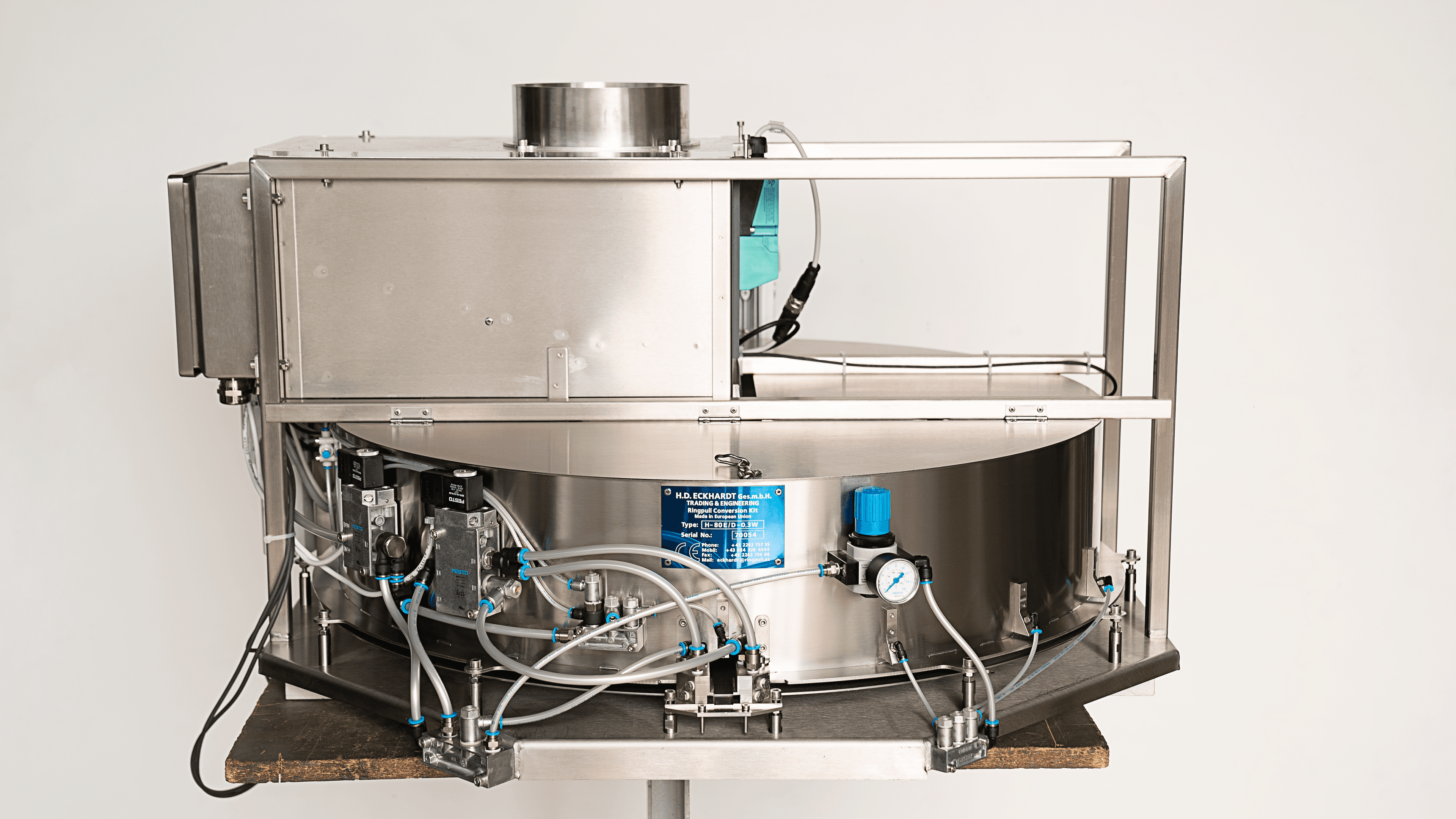

Sorting Unit H-80E
High capacity sorting unit for RingPull closures. Suitable for demanding production lines.
Contact for price
References
Reference projects 60 different countries Albania, Angola, Argentina, Australia, Austria, Azerbaijan Belarus, Bosnia, Brazil, Bulgaria, Burkina Faso Cambodia, China, Cote d'Ivoire, Croatia, Czech Republic Denmark, Egypt, Estonia, France Georgia, Germany, Greece Hungary, India, Iran, Ireland, Italy Kazachstan, Laos, Latvia, Lebanon Madeira, Malaysia, Macedonia, Myanmar Nepal, Netherlands, New Zealand Oman, Pakistan, Panama, Poland, Portugal Romania, Russia Serbia, Slovenia, South Africa, Spain, Switzerland Taiwan, Thailand, Togo, Turkey Ukraine, USA, Uzbekistan, Vietnam A small selection of products our customers.
Preis auf Anfrage
Terminal box
H.D.ECKHARDT
For connection of main power supply
Contact for price
Wagon
H.D.ECKHARDT
With separations, to store and clean the closing heads.
Contact for price
Closing head for “Mecafill” from Krones AG
H.D.ECKHARDT
For closing Ringpull closures 26,5mm.
Contact for price
Closing Head for Arol CC-Capper
Closing head for crown cork cappers from Arol S.p.a. Compatible with existing crown cork lines.
Contact for price
Hopper Models
Sorting units of RingPull closures Sorting units consist of a hopper and a dosing device. The electric control panel is installed on the sorting unit or is connected to it by a terminal box. Operating is done by a remote control cable or the control desk of the closing machine. Model: H-33 G Speed: 9.000 cph Weight : 28 kg Dimensions : 650x540x290 mm Model: Hopper H-80 E Speed : 42.000 cph Weight : 86 kg Dimensions : 1100x990x560 mm Model: H-52 E Speed : 23.000 cph Weight : 60 kg Dimensions : 800x680x510 mm Model: Hopper H-90 E Speed : 50.000 cph Weight : 98 kg Dimensions : 1250x1100x560mm Model: H-60 E Speed : 30.000 cph Weight : 63 kg Dimensions : 900x800x560 mm Model: Hopper H-120 E Speed : 60.000 cph Weight : 116 kg Dimensions : 1430x1300x560 mm
Preis auf Anfrage
Closing head for Arol S.p.a. capper with compensation spring
H.D.ECKHARDT
For closing Ringpull closures 26,5mm.
Contact for price
Closing head for “EUROSTAR” from Sidel
H.D.ECKHARDT
For closing Ringpull closures 26,5mm.
Contact for price

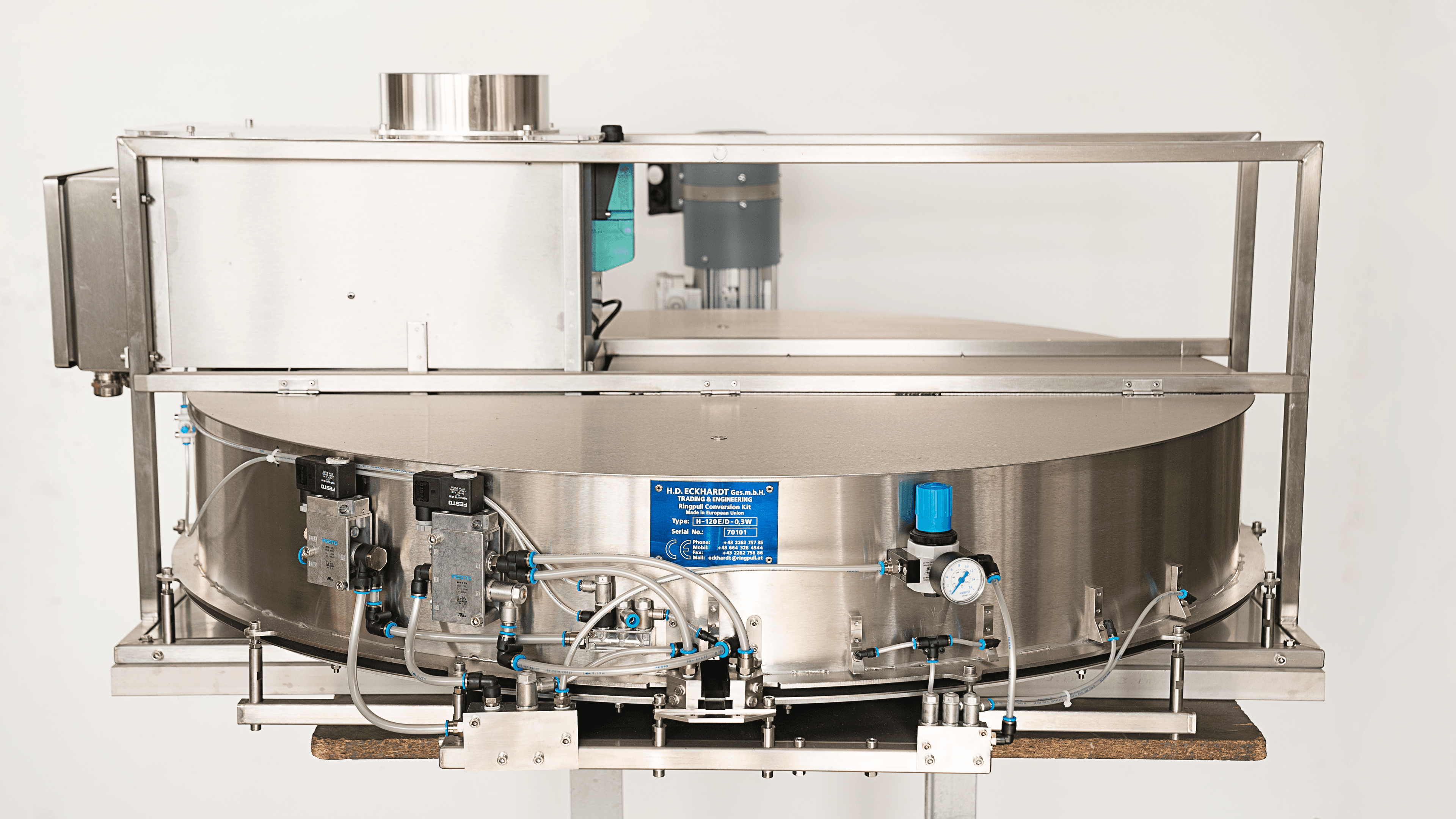

Sorting Unit H-120E
Maximum capacity sorting unit for RingPull closures. Top-of-the-line for highest production demands.
Contact for price

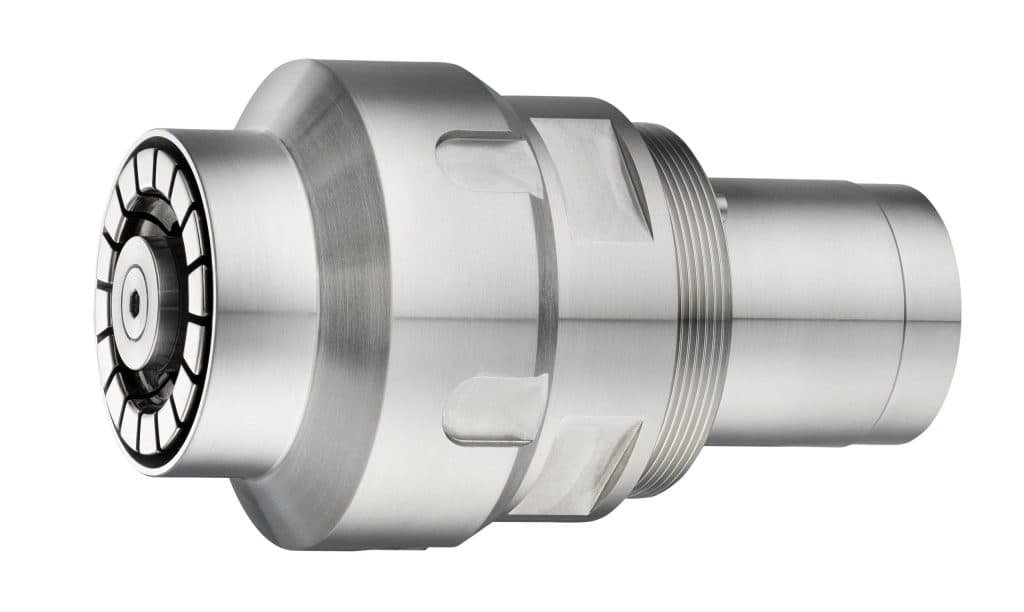

Closing Heads
Closing heads for crown cork and ROPP capper on glass bottles Standardised inserts, mounted in adapters which are individual to the machine. Usable for glass bottles. Part No.: A.10.113.1 Product name: Closing head for „Mecafill" from Krones AG Description: For closing Ringpull closures 26,5mm. Part No.: A.10.115 Product name: Closing head for „EUROSTAR" from Sidel Description: For closing Ringpull closures 26,5mm. Part No.: A.10.143 Product name: Closing head for KHS - 442 - 50 - 971 from KHS AG Description: For closing Ringpull closures 26,5mm. Part No.: A.10.069 Product name: Closing head for KHS Delta VVF capper Description: For closing Ringpull closures 26,5mm. Part No.: E.03.080 Product name: Closing head for KHS capper, short version with round thread Description: For closing Ringpull closures 26,5mm. Part No.: E.03.080.CH Product name: Closing head for GLM2 capper Description: For closing Ringpull closures 26,5mm. Part No.: E.03.161 Product name: Closing head for Arol S.p.a. capper with compensation spring Description: For closing Ringpull closures 26,5mm. Closing head - inserts for glass bottles Part No.: A.10.129.1.SB Product name: Closing head insert with spherical bearings Description: For all types of closing heads (not Krones „Mecafill"), can compensated some degrees of off-center between bottle and closing head. Part No.: A.10.103.2 Product name: Closing head insert Description: For KHS Delta VVF capper
Preis auf Anfrage

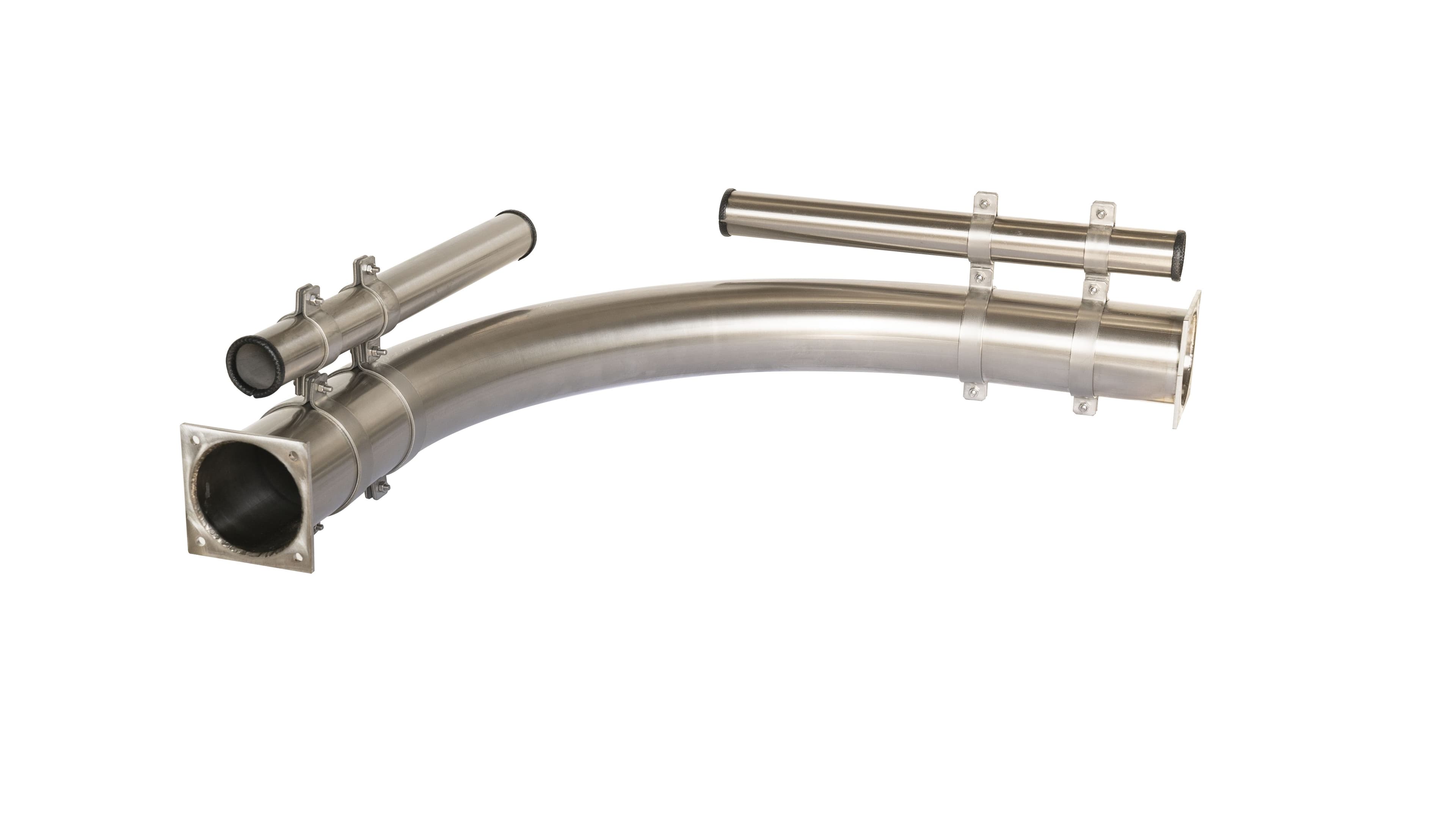

Pneumatic Elevator 9928
High-capacity pneumatic elevator for large-scale closure transport. Stainless steel flange connections. Extended reach up to 50 meters.
Contact for price
Cap Applicator with Bottle Burst Kit
Cap applicator equipped with bottle burst protection kit. Prevents damage from pressurized bottles. Safety feature for carbonated beverages.
Contact for price
Closing head for table drill machine
H.D.ECKHARDT
For closing Ringpull closures 26,5mm on glass bottles.
Contact for price
Components
Components for an Conversion-Kit Part No.: A.13.012 / A.13.013 Product name: Chute for Ringpull closures Description: For caps transport from the hopper to the cap applicator. Manufactured individuell for each capper/ project. Part No.: A.10.156 Product name: Cap applicator with progressive spring Description: To apply 26,5mm Ringpull closures on bottle mouthes max. 30.000 bph. Part No.: A.10.157 Product name: Cap applicator with progressive spring and air support Description: To apply 26,5mm Ringpull closures on bottle mouthes max. 60.000 bph. Part No.: A.10.158 Product name: Cap applicator with progressive spring and bottle-burst kit Description: To apply 26,5mm Ringpull closures on bottle mouthes inc. pneumatic parts for reject bottles after burst without caps (only hardware, no control unit) max. 30.000 bph. Part No.: L.60E Product name: Wagon Description: With separations, to store and clean the closing heads. Part No.: A.13.056 Product name: Arrangement for quick change of applicator Description: Very flexible holder for cap applier with adjustability from 0 - 50 mm Part No.: KL303 Product name: Terminal box Description: For connection of main power supply Part No.: D-0,3W Product name: Dosing device for feeding with pneumatic elevator Description: For dosing ringpull caps before being assorted Part No.: S.10.003 Product name: Consol for hopper Description: For the attachment of the hopper on the top plate of the crown cork capping machine. Manufactured individuell for each capper/ project. Part No.: S.10.003.1 Product name: Consol for hopper Description: For the attachment of the hopper on the podium over the crown cork capping machine. Manufactured individuell for each capper/ project. Model No. St43 St44 St45 Sorting unit H-33G H-52E H-80E, H-90E H-120E H-52E H-60E Pneumatic elevator control X X Frequency inverter X Remote control cable X Signal for aut. Operation X X Installation on sorting unit X
Preis auf Anfrage
Cap Applicator with Air Assistance
Cap applicator with air assistance for high-speed operations from 40,000 cph. Enhanced closure delivery for demanding production lines.
Contact for price
Start
Broschüre Um die ganze Broschüre durchzublättern bitte einfach auf das Bild klicken.
Preis auf Anfrage
Closing head for KHS – 442 – 50 – 971 from KHS AG
H.D.ECKHARDT
For closing Ringpull closures 26,5mm.
Contact for price
Closing head for KHS Delta VVF capper
H.D.ECKHARDT
For closing Ringpull closures 26,5mm.
Contact for price
Handverschließgerät
Handverschließgerät für Glasflaschen Artikelnummer.: A.10.032 Produktname: Handverschließgerät für Glasflaschen Beschreibung: Zum verschließen von Ringpull Verschlüssen 26,5mm an Glasflaschen. Handverschließvorrichtung für PET-Flaschen Artikelnummer.: A.10.076 Produktname: Handverschließgerät für Glas- und PET-Flaschen Beschreibung: Zum verschließen von Ringpull Verschlüssen 26,5mm an Glas- und PET-Flaschen Verschließkopf für Tischbohrmaschine Artikelnummer.: A.10.011 Produktname: Verschließkopf für Tischbohrmaschine Beschreibung: Zum verschließen von Ringpull Verschlüssen 26,5mm an Glasflaschen VIDEO Handverschließgerät
Preis auf Anfrage
Zeige 1–24 von 71 Ergebnissen
